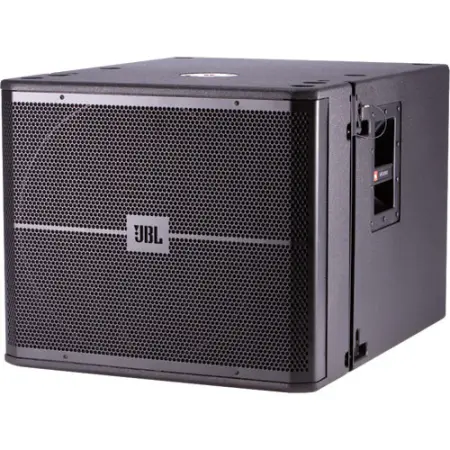

18 in. High Power Powered Flying Subwoofer
The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.
Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.
18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and
Integral rigging hardware for simple connection of enclosures and optional array frame.
20 mm threaded pole socket for solid, secure satellite speaker mounting.
Large port area for reduced distortion.
1500 Watts Peak
LF: Dual-Bridged Technology™, Class D
31 Hz – 220 Hz
(H x W x D)
508 mm x 597 mm x 749 mm
(20.0 in x 23.5 in x 29.5 in)
34 Hz – 220 Hz
Maximum Peak Output
126 dB SPL at 1m
Bandpass Nominal Impedance
LF: 2 x 2 ohms
1 x JBL 2268FF 457 mm (18 in) dual voice coil
Differential Drive® woofer with neodymium-magnet
Audio Input Connector
XLR with loop through
Input Attenuator (0-16 dB)
Selectable 80 Hz or 120 Hz Low Pass
80 Hz High-Pass enable/disable for XLR loop thru.
DSP based, resident in Input Module
DSP based limiters for mechanical and thermal protection
AC Power Operating Range
90-132 VAC or 216-264 VAC, 50/60Hz
AC Line Voltage
User selectable: 120V/240V (-15%, +10%)
AC Input Connector
Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector
Neutrik PowerCon (NAC 3MPB)
AC Current Requirements
6A per system at 120V, 3A per system at 240V
18 mm birch plywood.
Suspension / Mounting
Optional VRX-AF line-array frame kit or 10 mm forged eyebolts
Black DuraFlex™ finish
Powder coated, black, 16-gauge perforated steel with
acoustically transparent foam
38.5 kg (85 lb)
