JTS IN264 Microphone System IN264R/IN264TH + IN264TB + CM-501

$1,196.00 new
CALL or VIP REGISTRATION (free) new
Warranty



Available - Ships in 1-2 days Low Price Guarantee



or $109/mo Free Shipping, No Tax (except NJ)


User Reviews

Please log-in to write your review

read all reviews
Product Description

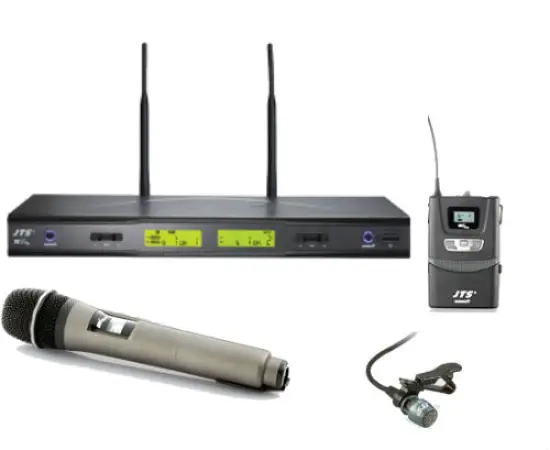

JTS Professional in264 wireless mic system  (JTS dual channel mic system)

UHF PLL Dual Channel Diversity Wireless Microphone System

Includes:

(1) IN264R (Receiver)
(1) IN64TB + CM-501 (Body Pack & Lavalier)
(1) IN64TH (handheld)

Specifications:

IN264R

Frequency Preparation PLL Synthesized Control
Remoset Radio Frequency : 2.4GHz
Effective distance: 10m
Carrier Frequency Range 36MHz within 502~960 MHz
S/N Ratio >105dB
T.H.D <0.6%@1KHz
Display LCD
Display Contents Channel, Antenna A/B, Mute Display, RF/AF Level Meter, Low battery, ID Number
Controls Power On/Off, Frequency Up/Down, Lock-on,
ID Pairing, Remoset
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Operation Voltage 12-18 VDC, 800 mA
Output Connector 2 XLR Balanced Socket
1 Ø6.3mm unbalanced phone jack
Dimension(m/m) 420mm(W) * 44mm(H) * 211mm(D)

IN64TH
Frequency Preparation PLL Synthesized Control
Channel number 64
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Channel, Battery Fuel Gauge,
ID Number
Controls Power On/Off, AF Level,
Frequency Up/Down, Lock-on Mode,ID Pairing
Spurious Emissions <-50 dBC
Audio Frequency Response 50~16,000 Hz
Battery UM3, AA 1.5V*2

IN64TB
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW / 50mW
(Depend on Local Regulation)
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Channel, Battery Fuel Gauge,
Controls ID Number
Power On/Off, AF Level,
Frequency Up/Down, PAD, Gain Control, ID Pairing
Lock-on Mode
Output connector 4P mini XLR
Spurious Emissions <-50 dBC
Audio Frequency Response 40~18,000 Hz
Battery UM3, AA 1.5V*2

CM-501
Connector 4P Mini XLR
Frequency Response 100~15,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1KHz) -60±3 dB* (1mV)*0dB=1V/μbar
Impedance 2.2kΩ
Max. SPL for 1% THD 130dB
Dimension(mm) Ø10.1mm(W)*  26.4mm(H)
Net Weight 21.5g
