UC-900RX

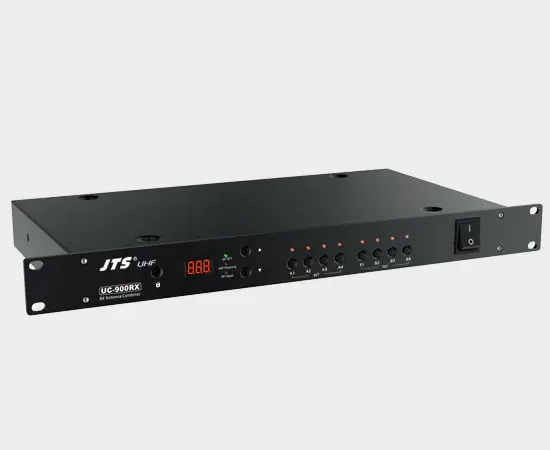

The UC-900RX is designed for receivers. It provides 2 x 4 antenna inputs to minimize RF dead zone on a stage or any venue. It also feature RF input ON/OFF, input attenuation from -31 to 0 dB and input signal ON/OFF control. The UC-900RX makes RF engineers’ job easy.

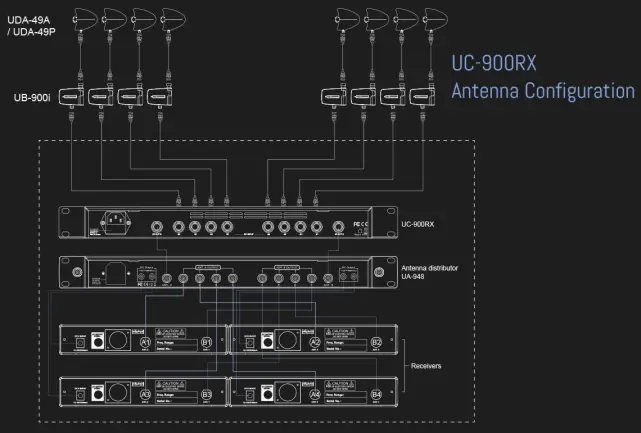

This allows you to connect up to four pairs of antennas to one wireless mic receiver. Use with the JTS UA-94B Antenna Distributor to allow up to connect up to four mic receivers to the four pairs of antennas.

UC-900RX
Frequency Range 470~970  Mhz
Full System Gain 8dB(±3dB)
Input Impedance 50 ohm
RF Input Power 0dBm(Max)@Attenuation=0dB
RF Input Attenuation -31~0dB (Step:1dB)
Input/Output Connectors BNC(F):Input x8 / Output x2
Functions 1. Antenna Booster Powering ON/OFF Control
2. RF Input Attenuation Control
3. RF Signal ON/OFF Control
Antenna Booster Power 12V/200mA*8
Power Supply 100~240VAC;MAX2A 50/60Hz
Dimensions 480mm(W)*45mm(H)*260mm(D)
Notes Actual product specifications may vary
depending on region
