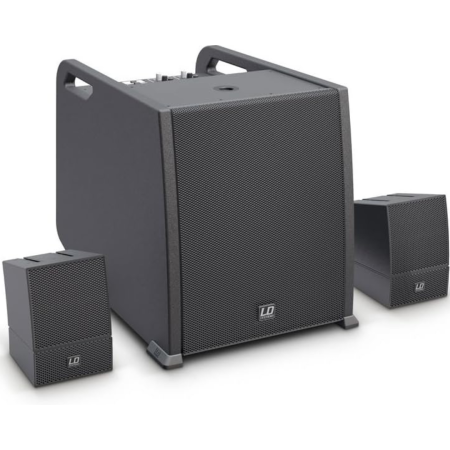

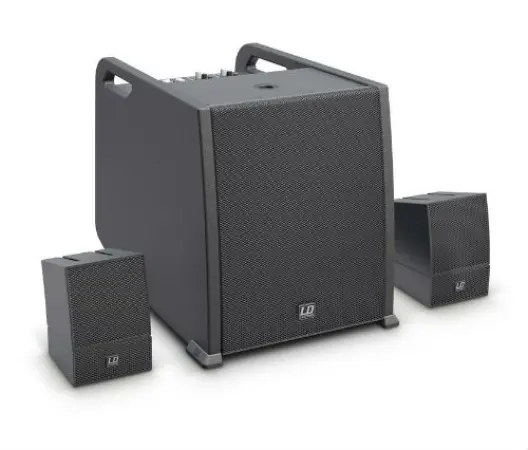

CURV 500 AVS
PORTABLE ARRAY SYSTEM AV SET INCLUDING SPEAKER CABLES
The CURV 500 AV Set is the perfect fit anywhere music is played: in bars, clubs, studios and even at home as a home entertainment system. Featuring a power of 380 watts RMS and a maximum sound pressure level of 122 dB, the CURV AV Set can remain discreetly in the background, but also provide an impressive rocking performance.

The 10" bass-reflex subwoofer with Class D power amplifier represents the core of the CURV 500 AVS and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo and Speakon-compatible sockets offer extensive connectivity options. Furthermore,the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles.

The two satellites are operated via SmartLink® adapters. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology; a 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.

The CURV 500 AV Set includes a subwoofer with a mixer unit, two satellites, two SmartLink® adapters, and two speaker cables. With optional wall and ceiling mounting systems, the satellites can be installed anywhere, where good sound and subtle appearance are required.

Specifications:

Product number: LDCURV500AVS
Product type: Portable Array System
Type: active
System output (RMS):: 380W
Color: black
Number of array satellites: 2
Number of Smartlink adapters: 2
Number of subwoofers: 1
Max. SPL (continuous): 116dB
Max. SPL (peak): 122dB
Frequency response: 47 - 20000Hz
Dispersion (H x V): 110° horizontal, vertical (each satellite) 10°
RMS: Subwoofer: 300 W , Array Satellites: 2 x 160W
Peak power: Subwoofer: 1200 W , Array Satellites: 2 x 640W
Amplifier: Class D
Protection circuits: thermal overload, short circuit, overload, DSP-based multiband limiter
Weight: 22kg
Accessories (included): Power cord, 2 x Speaker cable with Speakon-compatible plugs on terminal block (3 m)

Subwoofer
Low/mid driver dimensions: 10"
Low/mid driver dimensions (mm): 254mm
Cabinet construction: vented
Cabinet material: plywood
Cabinet surface: PA painting
Dimensions Subwoofer (W x H x D): 325 x 383 x 491mm
Subwoofer weight: 16.5kg
Subwoofer features: 4 channel mixer, 4 System DSP Presets, Threaded flange M20, Bluetooth, 16 DFX Presets, 3 ergonomic handles

Array Satellites
Mid/Hi system: MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms
Array Satellite Features: internal crossover, metal grille, WaveAhead® Technology
Array Satellite Material: die-cast aluminium
Array Satellite Surface:: powder coated
Array Satellite Dimensions (W x H x D): 122 x 122 x 122mm
Array Satellite Weight: 1.7kg

Smartlink® Adapter
Smartlink Adapter Features: 2 x 16 mm pole mount socket, 2x M6 thread for optional wall mount
Smartlink Adapter Connectors: 1 x Speakon-compatible, 1x Phoenix
Smartlink Adapter Material: die-cast aluminium
Smartlink Adapter Surface: powder coated
Smartlink Adapter Dimensions (W x H x D): 122 x 57 x 122mm
Smartlink Adapter Weight: 0.6kg

LD System CURV500AVS (LD Systems CURV 500AVS)
