Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both two balanced XLR and two unbalanced 6.35 mm audio outputs. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

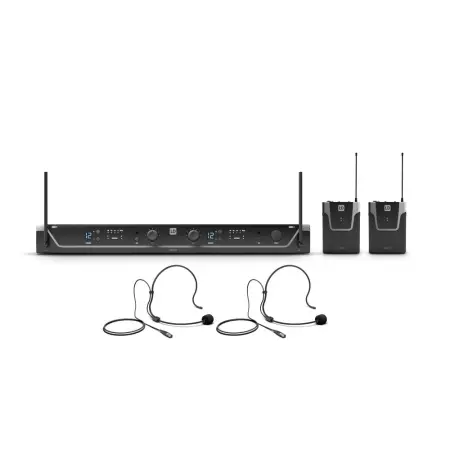

The U300® Series wireless systems have a fresh, modern look and are available with receivers and two cardioid dynamic handheld microphones (HHD2) or with two bodypacks and two headsets (BPH2). The microphone characteristic can be changed using U500®-series replaceable heads.

FEATURES:

UHF diversity wireless system with FM technology
12 selectable channels
100 metre range under ideal conditions
Up to 6 systems can be used simultaneously
ASC infrared synchronisation between transmitter and receiver
Squelch with pilot tone
10-hour transmitter operating time with two AA batteries
Receiver in sturdy metal housing
Rack mounting kit included

SPECIFICATIONS:

General
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Transmission frequency range
470 - 490 MHz
Channels
12
Groups
1
Antenna inputs
2 x fixed
Frequency response
35 - 16000
Noise reduction
Squelch
Transmission optimization
Pilot tone
Total Harmonic Distortion (THD)
< 0.3 %
Signal-to-noise ratio
104 dB
Audio output, balanced
3 x XLR
Audio output, unbalanced
6.3 mm jack, switchable unbalanced output level ( Line/Instrument )
Audio mix output, balanced
XLR
Audio mix output, unbalanced
6.3 mm jack
Max. output level
+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Controls
2 x Volume, Channel down, Channel up, Line/Instrument Level, Power On/Off
Indicators
5-LED VU-Meter, Antenna A/B, LC display
Operating voltage
12 V DC, 500 mA
Width
410 mm
Height
43 mm
Depth
120 mm
Weight
1,265 kg
Accessories (included)
2 x AA batteries, Power supply
Other features
IR frequency synchronisation, Pilot tone

LD Systems U304.7 BP (USA version) Body Pack Transmitter 470 - 490 MHz (only available in the USA)
View items
Product type
Wireless Microphone System Accessories
Type
Bodypack
Frequency response
25 - 16000
Transmission frequency range
470 - 490 MHz
Channels
12
Groups
1
Inputs
Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Signal-to-noise ratio
104 dB
Rated HF output power
10 mW
Controls
Gain (3-way switch), Power On/Off
Indicators
ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)
Operating voltage
2 x AA battery
Operating time
>10 h
Width
65 mm
Weight
0,085 kg
Height
91 mm
Depth
25 mm
Other features
Belt clip, IR frequency synchronisation, Pilot tone
LD Systems WS 100 MH 1 Headset
View items
Product type
Wireless Microphone System Accessories
Type
Headsets
Frequency response
20 - 20.000
Directivity
Cardioid
Nominal impedance
680 Ohm(s)
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Accessories (included)
Foam windscreen
Weight
0,049 kg

LDS U3047BPH2(US) (LD Systems U305 BPH2 - 470 - 490 MHz)
