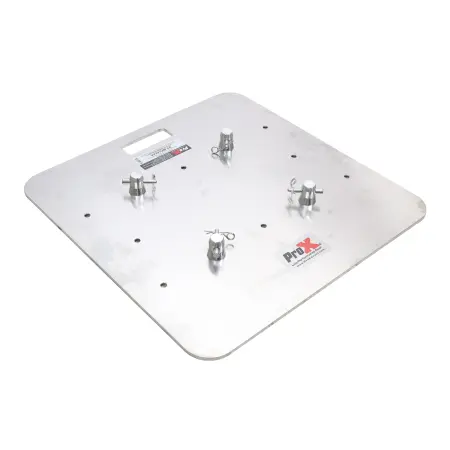

ProX XT-BP2424A | F34, 24in Aluminum Base Plate
$215.99
The ProX XT-BP2424A 24" x 24" Aluminum Base Plate is made with 10mm AWT6 6082 Aluminum Plate and weighs 22lbs each. Protect your base plates with fabric carrying bags available separately. XB-BP24TB
XT-SQ SERIES DIMENSIONS:
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm
Includes connecting hardware set.
ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.
Features:
Manufactured in our Own Factory!
Material: 10mm EN-AWT6 6082 Aluminum
TUV Certified Manufacturing
Fits most manufacturers with F34 Conical Couplers
TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.
To Fit
Standard Size F34 Truss Configurations.
Dimensions
24.00"L x 24.00"W x 2.00"H
Weight: 22.00 lbs
Shipping Dimensions
24.00"L x 24.50"D x 2.50"H
Shipping Weight: 22.50 lbs
