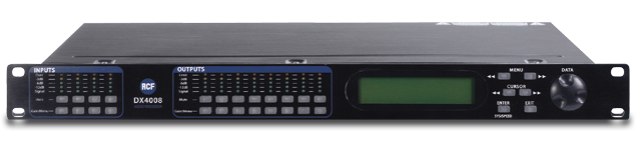

RCF DX 4008 (RCF DX4008)

The DX 4008 is a complete 4 input - 8 output digital loudspeaker management system designed for the touring or fixed sound installation markets.

The absolute latest in available technology is utilized with 32-bit (40-bit extended) floating point processor and high performance 24-bit Analog Converters. The high-bit DSP prevents noise and distortion induced by truncation errors of the commonly used 24-bit fixed-point devices. A complete set of parameters include I/O levels, delay,polarity, 6 bands of parametric EQ per channel, multiple crossover selections and full function limiters. The DX 4008 can be controlled or configured in real time on the panel or with the intuitive PC GUI accessed via the RS 232 interface. Software upgrade for CPU and DSP via PC keeps the device current with newly developed algorithms and function once available. Multiple setup storage and system security complete this professional package.

FEATURES
The DX 4008 is a complete 4 input - 8 output digital loudspeaker management system designed for the touring or fixed sound installation markets
Sampling rate can be set to 96kHz
Precise frequency control is achieved with its 1 Hz resolution
Inputs and outputs can be routed in multiple configuration to meet any requirements
The DX 4008 is shipped with a special PC Graphic User Interface (GUI) application - XLink
XLink gives the user an option to control the DX 4008 unit from a remote PC via the RS232 serial communication link
The GUI application makes much easier control and monitor the device, allowing the user to get the whole picture on one screen
Programs can be recalled and stored from/to PC's hard drive, thus expanding the storage to become virtuality limitless

INPUT AND OUTPUT SECTION

Input Impendance:>10 kΩ
Output Impendance:50 Ω
Maximum Level:+ 20 dBu
Type:XLR 3 Electronically balanced

AUDIO PERFORMANCE

Frequency Response:+/- 0.1 dB (20 to 20 kHz)
Dynamic Range:115 dB typ (unweighted)
CMMR:> 60 dB (50 to 10 kHz)
Crosstalk:< -100 dB
Distortion:0.001% (1 kHz @ 18 dBu)

DIGITAL AUDIO PERFORMANCE

Resolution:32 bit (40-bit extended)
Sampling Rate:48 / 96 kHz
A/D - D/A Converters:24 bit
Propagation Delay:3 ms
No. of Programs:30

FRONT PANEL CONTROL

Display:4 x 26 Character Backlit LCD
Buttons:12 Mute Controls 12 Gain / Manu Controls 6 Menu Controls
"DATA" control:(dial encoder) Embedded Thumb Wheel
Level Meters:5 segment LED
Interface:RS 232 Female DB-9

LIMITERS

Threshold:-20 to +20 dBu
Attack Time:0.3 to 100 ms
Release Time:2 to 32 X the attack time

EQUALISATION

Type:Parametric, Hi-shelf, Lo-shelf 6 per I/O
Gain:in 0.25dB steps -30 to +15dB
Bandwidth:(Q=0.5 to 72) 0.02 to 2.50 octaves

CROSSOVER FILTERS

Filter Types:Butterworth, Bessel, Linkwitz Riley
Slopes:6 to 24dB/oct (96kHz) 6 to 48dB/oct (48kHz)

POWER REQUIREMENT

Operating voltage:220÷240 / 110÷120 ~ 50 / 60 V ~ Hz
Operating temperature range:0 ÷ +55 °C
Operating humidity:20 ÷ 90 % RH non-condensing

PHISICAL SPECIFICATION

Height:44 / 1.73 mm/inch
Width:483 / 19.01 mm/inch
Depth:203 / 7.99 mm/inch
Net Weight:Kg/Lbs 3 / 6.61

SHIPPING INFORMATION

Package height:80 / 3.14 mm/inch
Package width:615 / 24.2 mm/inch
Package depth:360 / 14.17 mm/inch
Shipping Weight:4.3 / 9.4 Kg/Lbs
