RCF EVOX J8
ACTIVE 2 WAY PORTABLE LINE ARRAY SPEAKER

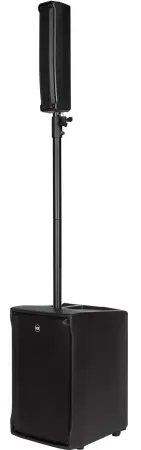

The RCF Evox J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response. Order this 2 way portable line array speaker today!
RCF Evox J8 Features:
128 dB Max SPL
1400 Watt 2-way peak power
DSP Processing with FiRPHASE
12" woofer, high power 2.5" voice coil
8 x 2" ultra compact fullrange 1.0" voice coil
2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
23,8/52.5 kg/lbs
RCF Evox J8 Specifications:
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:40 Hz ÷ 20 Hz
Max SPL:128 dB
Horizontal coverage angle:120°
Vertical coverage angle:30°
Fullrange:8 x 2.0'', 1.0'' v.c
Woofer:12'', 2.5'' v.c
INPUT/OUTPUT SECTION
Input signal:bal/unbal

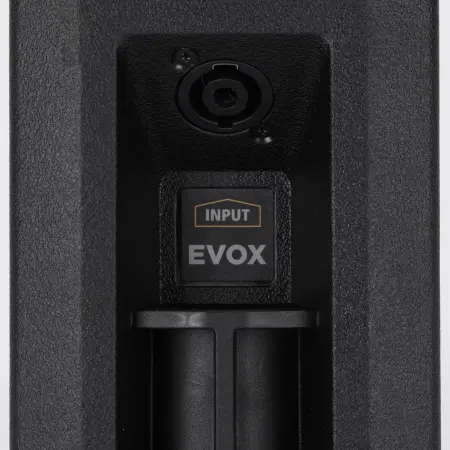

Input connectors:XRL, Jack

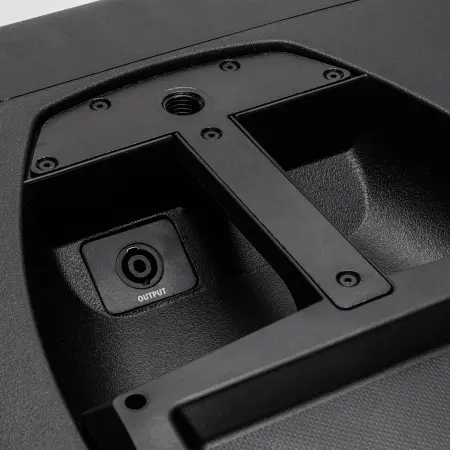

Output connectors:XLR
Input sensitivity:-2 dBu/+4 dBu
PROCESSOR SECTION
Crossover frequencies:220 Hz
Protections:Thermal, RMS
Limiter:Soft Limiter
Controls:Volume, Boost, Mic/Line
AMPLIFIER SPECIFICATIONS
Total power:1400 W PEAK
High frequencies:400 W PEAK
Low frequencies:1000 W PEAK
Total power:700 W RMS
High frequencies:200 W RMS
Low frequencies:500 W RMS
Connections:Convection
CABINET
Cabinet Material:PP Composite
Handles:1 Top
Pole Mount/Cap:Yes
Grille:steel
Color:Black
PHYSICAL SPECIFICATIONS
Height:623/24.53 mm/inch
Width:400/15.75 mm/inch
Depth:460/18.11 mm/inch
Net Weight:23.8/52.47 kg/lbs
