RCF P3108

$915.00 new
CALL or VIP REGISTRATION (free) new
Warranty



Available - Ships in 1-2 days Low Price Guarantee



or $83/mo Free Shipping, No Tax (except NJ)


User Reviews

Please log-in to write your review

read all reviews
Product Description

RCF P3108 (RCF P 3108)

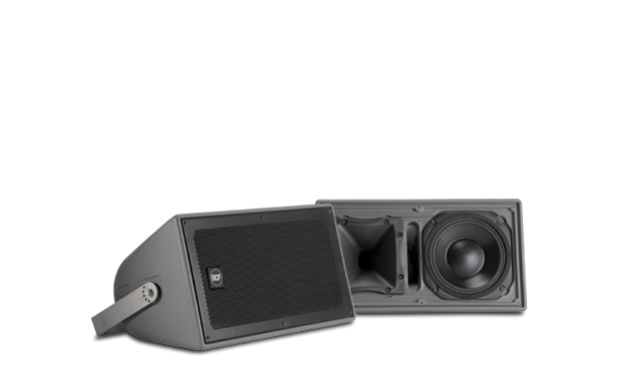

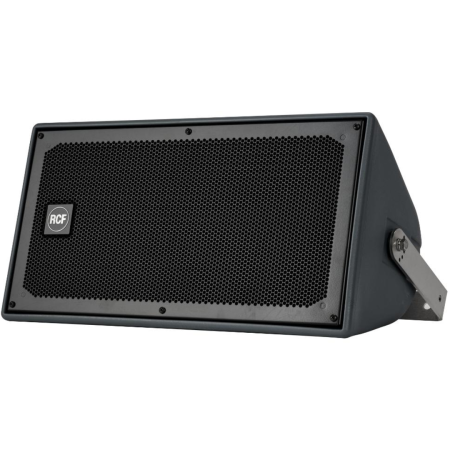

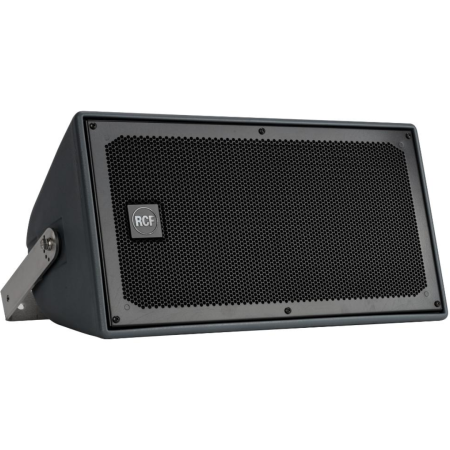

The P3108 is a weatherproof full range, wide-dispersion, two way loudspeaker system for offering substantial power and efficiecny for a variety of professional indoor or outdoor applications.

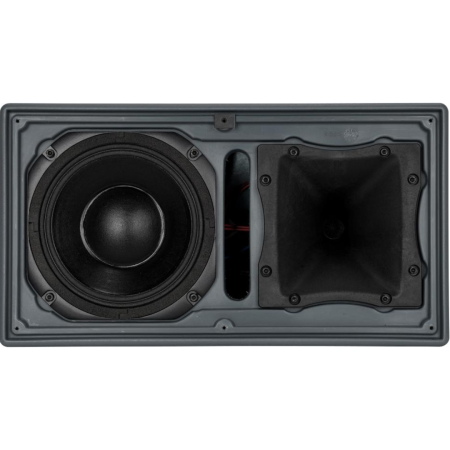

The high frequency section is a constant directivity CMD horn loaded with a 1” RCF Precision compression driver with a 1.5” diaphragm assembly for smooth, wide dispersion.
The low-frequency transducer is a 8” woofer with a 2.5” voice coil. The cabinet is a single piece rotational moulded in medium density polyethylene, full UV protected. The cabinet is equipped 4xM8 brass inserts and stainless steel U-Bracket. The front logo is in aluminium and rotatable. The grille is in custom perforated aluminium with open-cell fibres and water repellent woven fabric backing. P 3108 is suitable for indoor and outdoor applications/installations, it meets the requirements of IP 55 code (International Protection Rating).

FEATURES

Weatherproof cabinet IP 55
Aluminium grill
One 8" high-output LF transducer with 2.5" voice coil
One RCF Precision 1" Compression Driver with 1:5" voice coil
90° x 60° constant directivity horn
Built in passive crossover
2° x 15° enclosure sides for array configurations
Active Mosfet Compression Driver Protection
4 brass suspension points (M8)

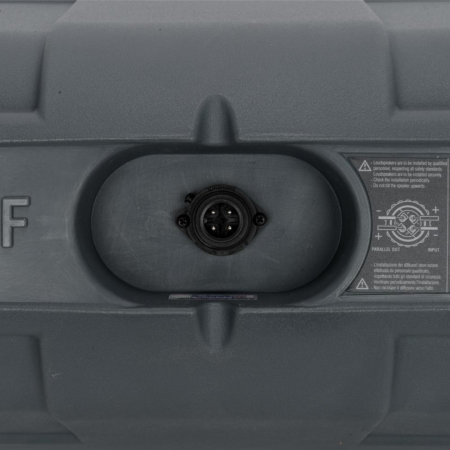

Imput connector 4 pole Amphenol IP 67

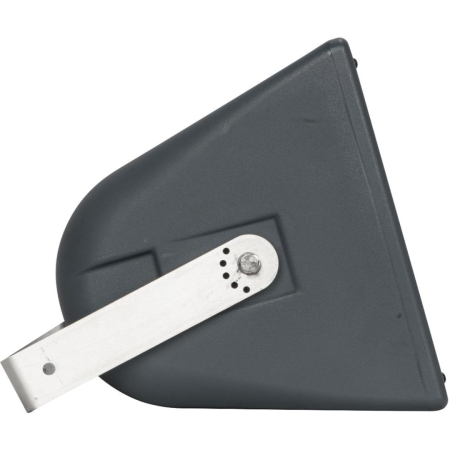

Mounting hardware 304 stainlesssteel, highly resistant to corrosion and oxidation

ACOUSTICAL SPECIFICATIONS

Frequency Response -10 dB:80 Hz ÷ 20000 Hz
Max SPL @ 1m:125 dB
Horizontal coverage angle:90°°
Vertical coverage angle:60°°
Directivity index; Q:11
System Sensitivity:94 dB
Nominal Impedance:8 Ω
Power Handling:300 W
Peak Power Handling:1200 W
Protections:Dinamyc
Crossover frequencies:1800 Hz

TRANSDUCERS

Compression Driver:1" HF driver, 2.5" voice coil
Nominal Impedance:8 Ω
Input Power Rating:25 W AES
Sensitivity:109 dB
Woofer:8" woofer, 2.5" voice coil
Nominal Impedance:8 Ω
Input Power Rating:300 W AES
Sensitivity:95 dB

CABINET

Cabinet Material:Polyethylene rotomoulded
Hardware:4 x M8 + U-bracket and pair of spacers

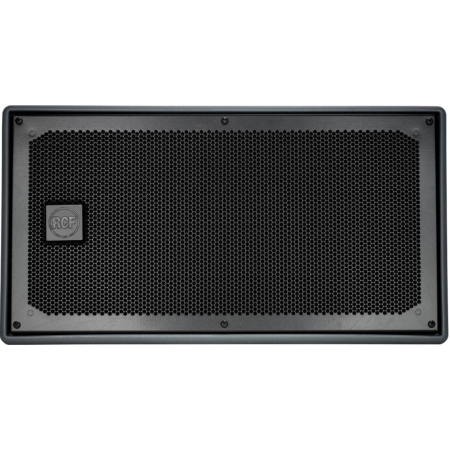

Grille:Custom perforated aluminium grille with open-cell fiber and water repellent woven fabric backing
Color:Gray

PHYSICAL SPECIFICATIONS

Height:266 / 10.47 mm/inch
Width:493 / 19.41 mm/inch
Depth:250 / 9.84 mm/inch
Net Weight:10 / 22 kg/lbs
