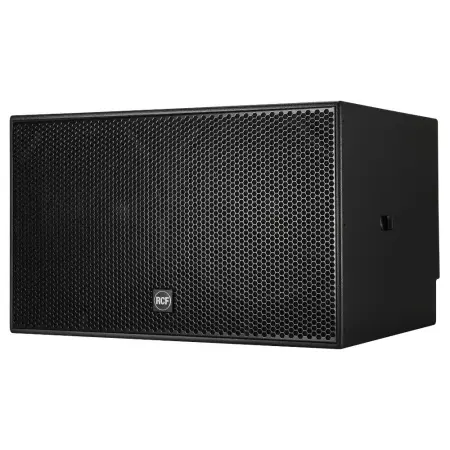

The S8028 II is a very high-output, high power bass reflex subwoofer. The system is equipped with two advanced, hypervented 18” RCF precision woofers mounted in a bass reflex configuration. The cabinet design is optimised to achieve tight and maximised output. Each 18” features massive vented magnets and 4” copper voice coil and represents the state of the art of RCF precision transducers technology. The system is able to produce a Max SPL of 141 dB and handles 3000 Watts AES. The cabinet features two Neutrik Speakon™ connectors in a recessed input plate. A M20 pole mount adaptor is provided on the top of the cabinet.

FEATURES:

2 x 18" high-efficiency 4.0" voice-coil woofer with Inside/Outside Coil Technology
141 dB maximum sound pressure level
Response down to 30 Hz
System Power rating 3000 Watt RMS
M20 standard pole mount in top section of cabinet
Baltic Birch cabinet painted with black, heavy duty, textured epoxy
Recessed Speakon NL4 Input/Output
Protective metal grille, polyester fabric coated

SPECIFICATIONS:

ACOUSTICAL SPECIFICATIONS
Frequency Response (-10dB)
30 Hz ÷ 200 Hz
Max SPL @ 1m
141 dB
System Sensitivity
101 dB
POWER SECTION
Amplification
Full Range
Nominal Impedance
4 ohm
Power Handling
3000 W
Peak Power Handling
12000 W PEAK
TRANSDUCERS
Woofer
2 x 18'', 4.0'' v.c
INPUT/OUTPUT SECTION
Input connectors
Speakon® NL4
Output connectors
Speakon® NL4
STANDARD COMPLIANCE
Safety agency
CE compliant
PHYSICAL SPECIFICATIONS
Handles
Integrated hand carry points
Pole mount/Cap
Yes
Color
Black
SIZE
Height
639 mm / 25.16 inches
Width
1045 mm / 41.14 inches
Depth
770 mm / 30.31 inches
Weight
80 kg / 176.37 lbs
SHIPPING INFORMATION
Package Height
675 mm / 26.57 inches
Package Width
1080 mm / 42.52 inches
Package Depth
805 mm / 31.69 inches
Package Weight
85 kg / 187.39 lbs

RCF USA S 8028 II (RCF S8028 MK2 Passive)
