Product Description

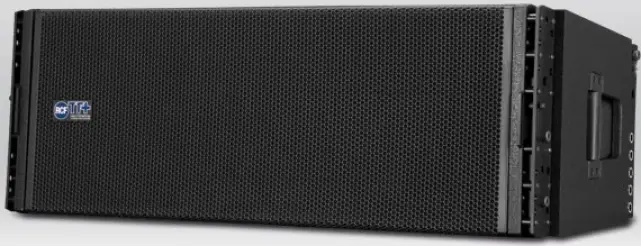

RCF TTL55 A (RCF TTL 55A)

The TTL55-A is a high power, three way, active line array module engineered to deliver an incredible output for use in indoor or outdoor large spaces. The system is designed to be easily scalable from few modules for medium and small theatres to full size arrays for very large outdoor stadia and public spaces.

The three new designs for the six neodymium transducers that power the system represent the result of many years dedicated in pioneering new solutions using the best materials available on the market. The integration of the 3500 W four channel digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.

Features
  • Tour grade cabinet and mechanics
  • 3500 Watt, 4 way amplification
  • 6 x high power neodymium transducers
  • High quality analog input board
  • 96 kHz, 32 bit DSP processing
  • Remote monitoring and control
  • Maximum output per size on the market
Acoustical Specifications
  • Frequency Response -3 dB: 50 Hz ÷ 20 kHz
  • Max SPL: 143 dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: max 7°
  • Compression Driver: 3x1.5" neo, 2.5" voice coil
  • Midrange: 10" neo, 3.5" voice coil
  • Woofer: 2x12" neo, 4" voice coil
Input/Output Section
  • Input connectors: XLR, Ethercon
  • Output connectors: XLR, Ethercon
  • Input sensitivity: 4 dBu
Processor Section
  • Crossover frequencies: 320 Hz/1300 Hz
  • Protections: thermal, excurs., rms
  • Limiter: soft limiter
  • Controls: DSP controlled
Amplifier Specifications
  • Total power: 3500 W
  • High frequencies: 500 W
  • Mid frequencies: 1000 W
  • Low frequencies: 2x1000 W
  • Cooling: convection/forced
  • Connections: powercon
Cabinet
  • Cabinet Material: baltic birch plywood
  • Hardware: array fly-ware
  • Handles: 2 side
Physical Specifications
  • Height: 380/15 mm/inch
  • Width: 1020/40 mm/inch
  • Depth: 550/21.6 mm/inch
  • Net Weight: 67/147.7 kg/lbs

The best vocal clarity from a large format line array.

The TTL55-A is the flagship of the TT+ High Definition Touring and Theatre Series Large Venues products.

The module is specifically dedicated to highly demanding large scale events and is designed to provide the audio engineer with the highest level of audio fidelity and intelligibility.
This is why we put all our efforts to offer a high power speaker system combined with dedicated processing and amplification technologies that are superior in acoustic performance and control technology resulting in an incredibly powerful active line array module.

MAXIMUM EFFICIENCY

The TTL55-A is a true active and high power ready to use touring system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.

FULLY INTEGRATED SYSTEM

The integrated processing and the cabling reduction will make the set-up faster and easier.
The compactness and lightweight of the system combined with top of class steel on board mechanics helps during rigging operations as well as during transportation.
