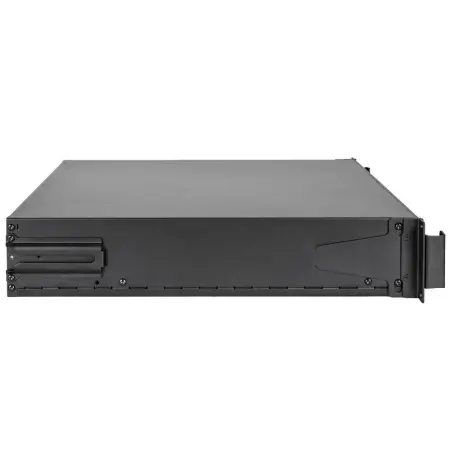

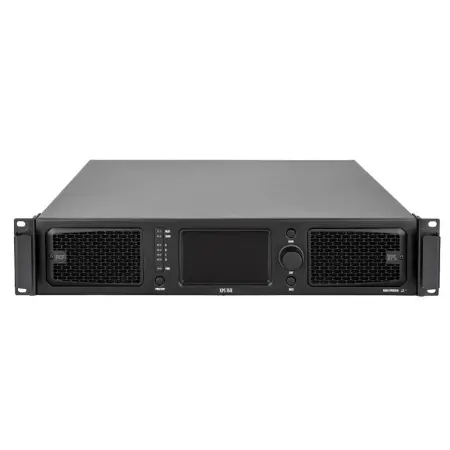

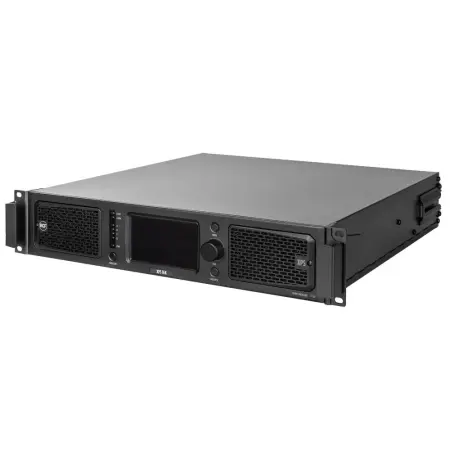

XPS 16K is a four-channel power amplifier with advanced processing and analog/digital routing options for both touring and install use. With 4x4000 W Class D continuous power at 2.7 ohms, 40-bit floating-point processing at 96 kHz, and 32-bit internal routing, XPS 16K packs extreme power density in a 2U chassis. Designed for both touring and installed sound systems, XPS is intended for use with high-performance speakers and provides ready-to-use configurations and presets. It can also be used in linear mode with advanced tuning capabilities. Each output features: 4000 ms output delay (1372 m / 4501 ft), EQ Filters, Crossovers, FIR Filters, Multiband Compressor, RMS Limiter, and Thermal limiter. XPS delivers rider-friendly premium sound with full RDNet remote management, large touch interface onboard, exceptional signal/noise ratio, ultra-low distortion, and extreme dynamic range.

FEATURES:

16000 W Total Continuous Power
40-bit Floating-point Processing, up to 96 kHz
32-bit Fixed-point Internal Routing
FiRPHASE, Bass Motion Control, Bass Shaper
RDNet Networked Management
Touch 4.3" Color TFT Interface
Full On-board Processing with Delay, EQ, Comp/Limiter
On-board Speaker Presets Library

SPECIFICATIONS:

AMPLIFIER SPECIFICATIONS
Amplifier Class
D
Output Power (EIAJ 8:32 all channels driven)
4 x 4000 W @ 2.7 ohm
4 x 2600 W @ 4 ohm
4 x 1400 W @ 8 ohm
Frequency Response (-3dB)
20 Hz ÷ 23000 Hz
SNR Analog inputs (unweighted)
>111 dB
SNR Digital inputs (unweighted)
>115 dB
Crosstalk
<70 dB
Distortion (THD+N) (20 Hz ÷ 20000 Hz,1000 W @ 4 ohm)
<0.2 %
Gain (linear mode @ 0 dB)
32 dB
Damping factor (@ 4 ohm, 20 Hz ÷ 1500 Hz)
>95
Max burst length (@ 50 Hz, CF = 7 dB, 4 ohm, 1% THD+N)
200 ms
INPUT SECTION
Total number of inputs
8
Line inputs
4
Line connectors
XLR
Digital inputs
4
Digital connectors
XLR
Digital type
AES/EBU
General Purpose Inputs (GPI)
2
Programmable GPI
Yes
Photo-coupled GPI
2
OUTPUT SECTION
Signal output number
4
Signal output connectors
XLR
Power output connectors
Speakon
General Purpose Outputs (GPO)
3
Programmable GPO
Yes
PROCESSING
DSP
2 SHARC, 40-bit floating point, 96 kHz
2 ADAU, 32-bit fixed point, 96 kHz
EQ Filters
Peaking | HI/LO-shelving | HI/LO-pass (Butterworth, Linkwitz-Riley, Bessel)
Advanced algorithms
FiRPHASE technology | BASS shaper | air compensation | mid-low correction | driver excursion control | dynamic PEQ | multi-band compressor | pilot tone detection | backup recovery strategy | impedance load measurement
Compressors
RMS limiter | dynamic compressor | power limiter | thermal compressor
Delay
0 ÷ 4000 ms (each channel)
Tone controls
Yes
High-pass filter
10 Hz ÷ 1000 Hz
Crossover
2500 ÷ 3500 Hz
Automatic gain control
Yes
CONFIGURATION AND CONTROL
Configuration
Front panel touch screen, PC Software
Network
Gigabit ethernet
RCF speakers presets
Yes
Priority
Yes
Protocols for system integration
Proprietary OSC based protocol, Q-SYS
RDNet
Yes
PROTECTIONS
Cooling
Forced
Short circuit
Yes
Thermal
Yes
DC
Yes
Fuses
Yes
VHF (Very High Frequencies)
Yes
OPERATING CONDITIONS
Temperature range - Continuous operation
-5°C ÷ +40°C / +23°F ÷ +104°F
Temperature range - Reduced output power
-5°C to +50°C / +23°F to +122°F
Fan noise idle < (dBA)
<35 dBA
Fan noise max < (dBA)
<64 dBA
POWER REQUIREMENT
Operating voltage
90-240 V~ 50/60Hz
Nominal current AC @ 100-120 V
30 A
Nominal current AC @ 220-240 V
16 A
Stand by power consumption
20 W
Idle power consumption
90 W
Power consumption (MAX)
5800 W
Main fuse
Internal
STANDARD COMPLIANCE
Safety agency
CE compliant, UL 62368-1, 3rd Ed.
CSA C22.2 No. 62368-1:19, 3rd Ed.
PHYSICAL SPECIFICATIONS
Handles
2 metal handles for rack mount
Color
Black - RAL 9005
Rack mounting
19", 2U
SIZE
Height
88.7 mm / 3.49 inches
Width
482 mm / 18.98 inches
Depth
482.4 mm / 18.99 inches
Weight
15 kg / 33.07 lbs
SHIPPING INFORMATION
Package Height
150 mm / 5.91 inches
Package Width
580 mm / 22.83 inches
Package Depth
600 mm / 23.62 inches
Package Weight
18 kg / 39.68 lbs
