Concert 88x Handheld - UHF Wireless System

Pro Performance. Simple Setup.
Taking the complexity out of going wireless, Samson Concert 88x combines professional-grade audio clarity, reliable operation in the UHF band with extremely easy setup. The Concert 88x Handheld system is an excellent choice for singers, educators and presenters making the leap to the freedom of wireless.

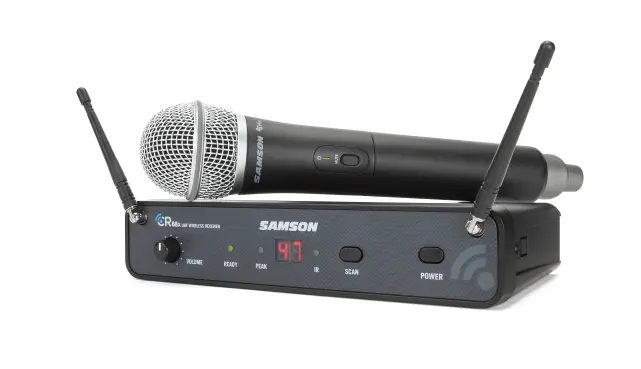

Concert 88x Handheld System

High-performance professional UHF wireless system
100 operating channels across 25 MHz bandwidth
Up to 8 systems can be used simultaneously per frequency band (region dependent)
300' operating range (line-of-site)
Rackmount kit included
CR88x Wireless Receiver

One-touch automatic frequency scan finds the best operating channel
Two digit LED display
Infrared link locks the receiver and transmitter to the same channel
True diversity design minimizes dropouts
Tone key prevents unwanted noise when transmitter is off or out of range
Balanced XLR and unbalanced 1/4" outputs
CH88 Handheld Transmitter

Unified microphone body and transmitter module
Adjustable input gain
Silent mute button
Power/Mute status indicator
Up to eight hours of continuous use from two AA batteries
Q7 Dynamic Microphone Capsule

Dynamic vocal microphone with tailored mid-range presence
Neodymium dynamic mic element for wide dynamic range
Supercardioid pickup pattern with excellent off-axis rejection

Simplicity and performance are at the core of the Concert 88x wireless systems. One-touch scanning analyzes all available channels, selecting the clearest channel for your performance space. An infrared signal then locks the transmitter and receiver together on the selected channel. With 100 frequencies and a wide 25 MHz bandwidth, there are plenty of available channels for your event/application.

The True-diversity design minimizes dropouts to provide loud and clear wireless reception for up to a 300' performance range. Tone-key and auto-mute circuitry ensure that only the audio signal from the CH88 handheld transmitter reaches the receiver, automatically muting the system when the transmitter is out of range to prevent unwanted noise from entering the signal path.

The rear panel provides both balanced (XLR) and unbalanced (1/4") connections to an amplifier, sound system, or recording desk. The half-rack format and included rackmount kit allow the single or multiple CR88x receivers to be installed in a portable audio rack or in a permanent venue.

The CH88 handheld transmitter features the Samson Q7 dynamic microphone capsule. This microphone offers an enhanced dynamic range and excellent transient response and the super-cardioid pickup pattern provides excellent off-axis rejection, minimizing ambient noise and reducing feedback. Enjoy up to eight hours of continuous operation from a pair of AA batteries.

Sam Son CH88-Q7/CR88x Q7 Mic (Samson SWC88XHQ7-D)
