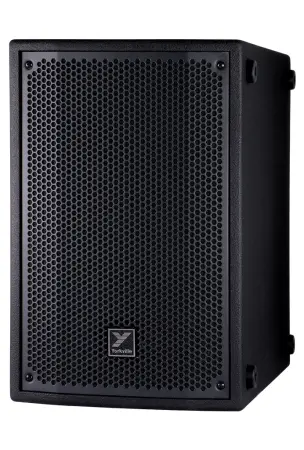

Introducing Yorkville Sound’s most affordable 10-inch Subwoofer.
The YXL10SP weighs in at just over 30 lbs, and opens up an option to
deliver hefty bass with a small footprint. Providing 1000 watts with
efficient speaker components, the YXL10SP provides an affordable
solution to add bass to your live sound without overwhelming the
mix in smaller venues.

Features
1000 Watts (Peak) 500 Watts (Program)
10-inch woofer with 2.4-inch voice coil
DSP processing with component protection
Master Level control with Activity indicator
3 Performance modes, Punch, Smooth and Deep

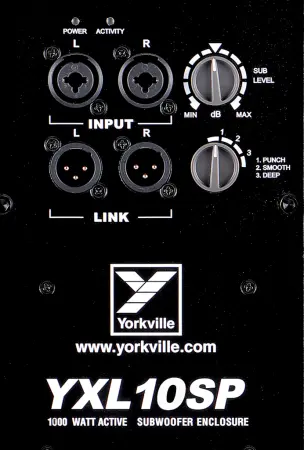

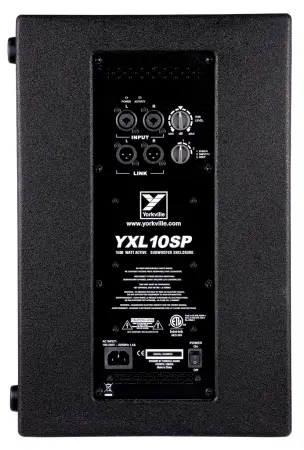

Recessed control panel

Specifications
System Type Subwoofer
Powered or Passive Powered
Power Rating (watts) 1000 watts peak
500 watts program
Max SPL (dB) 125dB continuous
Frequency Response (Hz +/- 3dB) 50 - 100Hz
Crossover Frequency (Hz) 100Hz
LF Woofer 10” (2.4” Voice Coil)
LF Amplifier Type Class D
Cooling Scheme Speed Controlled Fan
Power Cable Yes (Detachable IEC)
Level Controls Master
EQ Controls Pushbutton select,
Punch, Smooth, Deep
Inputs 2 x Combijack (XLR/1/4”)
Outputs 2 x LINK (XLR Male)
Bar Handles 1 x Top
Pole Mount Adapter (1 3/8-inch/3.5cm) 1 x Side
Enclosure Materials 12mm Plywood
Grille Powdered Coated
Perforated Steel
Covering / Finish Textured Paint
Dimensions (DWH xbackW, inches) 18.25 x 12 x 18.75
Dimensions (DWH xbackW, cm) 47 x 31 x 48
Weight (lbs/kg) 34.5 / 15.6
Box Dimensions (LxWxH, inches) 22.4 x 16.3 x 23
Box Dimensions (LxWxH, cm) 57 x 41.5 x 58

Yorkville USA YXL10-SP (Yorkville YXL 10SP)
