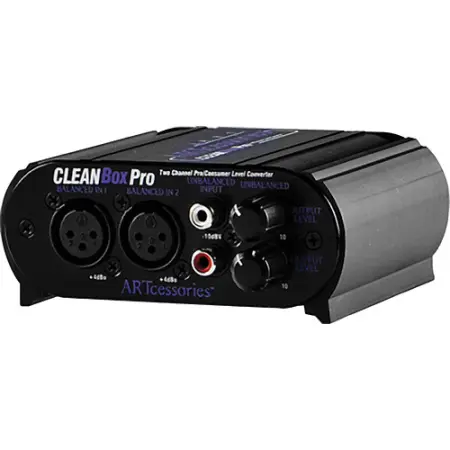

The ART CLEANBoxPro provides two channels of unbalanced to balanced level conversion and two channels of balanced to unbalanced level conversion in a rugged, compact, and portable unit. Balanced lines offer increased immunity to external electrical noise, such as hum. Since a balanced system minimizes induced noise, it is the preferred method of connecting audio gear, especially when long lengths of cable are used.

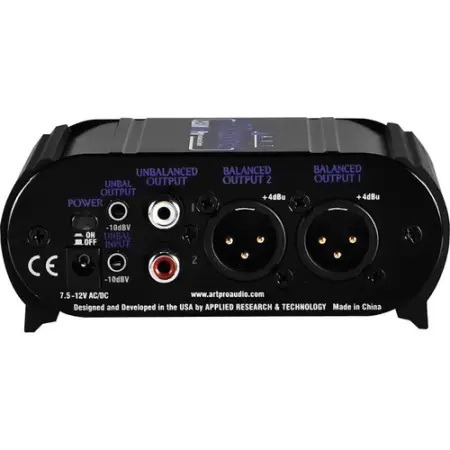

One section of the CLEANBoxPro converts two channels of consumer-level unbalanced input signals into two channels of pro line-level balanced output signals. It has two RCA jack inputs and a stereo mini-phone jack input connected in parallel. The balanced output feeds two XLR male jacks.

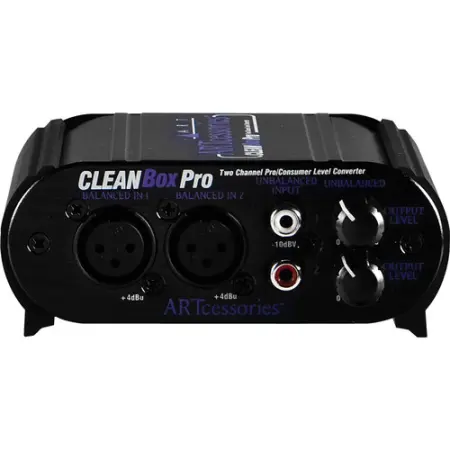

The other section of the CLEANBoxPro converts two channels of line-level balanced input signals into two channels of consumer unbalanced output signals. It has two XLR female input jacks. The unbalanced output feeds two RCA jacks and a stereo mini-phone jack connected in parallel. Each section has stereo level controls to optimize signal levels. An LED indicator lights when power is applied.

The CLEANBoxPro can be used in application areas including, but not limited to home or professional recording studios, live sound, PA, permanent installs, DJ, AV, consumer HiFi, podcasting and broadcasting. The CLEANBoxPro can be used with: mixers, audio processors, laptop computers, computer sound cards, CD/DVD players, video gaming machines, MP3 player/recorders, powered monitors and digital audio workstations.

FEATURES:

XLR connectors for balanced inputs and outputs
RCA phono jacks and stereo 1/8" mini-phone jacks for unbalanced inputs and outputs
Unbalanced output level control
Balanced output level control
Rugged extruded aluminum case
Lighted On/Off switch
Comes with external power supply for operation with AC mains
Low noise, low distortion circuitry

SPECIFICATIONS:

Signal to Noise Ratio > 90 dB
Frequency Response 20 Hz to 20 kHz, +/-1 dB
Input Impedance Balanced - 100 ohms
Unbalanced - 300 ohms
Maximum Gain Balanced to Unbalanced: -6 dB
Unbalanced to Balanced: +21 dB
Maximum Input Level +21 dBu
Maximum Output Level Balanced: +21 dBu
Unbalanced: +15 dBu
Output Impedance Balanced: 100 ohms
Unbalanced: 300 ohms
Power Requirements 7.5 - 12 V AC/DC, < 150 mA
Total Harmonic Distortion < 0.1% @ 1 kHz
Dimensions 1.85 x 4.60 x 4.30" (47.00 x 117.00 x 109.00 mm)
Weight 1.10 lb (0.50 kg)
Packaging Info
Package Weight 1.45 lb
Box Dimensions (LxWxH) 9.95 x 5.1 x 2.85"

ART CLEANBOXPRO (Art Bi-Directional Stereo Converter Box)
