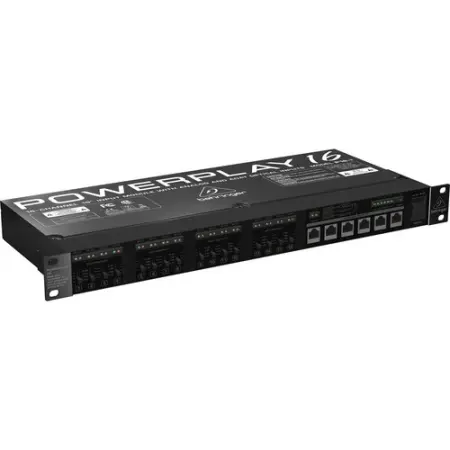

The Behringer Powerplay 16 P16-I features 16 analog and ADAT optical inputs, and 6 Ultranet Network outputs via Cat5 connections. The P16-I Input Module is designed to tie-in the direct outputs of an analog console with up to 6 Behringer P-16M personal monitors (sold separately) in both recording and live sound reinforcement.
The complete system allows singers, musicians, speakers and other talent the ability to set monitoring levels and customize their own personal monitor mixes, leaving the engineer free to record or create a front-of-house (FOH) PA mix in sound reinforcement applications.
There are 4-position gain switches per channel with -10, 0, +4 and +22dB settings. The P16-I Input Module is mountable in a 19-inch rack enclosure, and a complete Powerplay 16 monitoring system is an ideal monitoring solution for houses-of-worship, small live performance venues, conference halls, auditoriums and more.
Converts 16 analog inputs into 24-bit digital audio to be transmitted via standard CAT5e cable
2 x 8-channel ADAT optical inputs with auto detect and priority select
16 balanced, high-headroom TRS audio inputs
State-of-the-art 24-bit A/D converters for premium audio quality
4-position gain switches per channel pair (-10, 0, +4, +22 dB)
Digital inputs support 44.1 and 48kHz sample rates
Ultra-low system latency of less than 1 millisecond
Signal Present and Clip LEDs per channel plus ADAT status LEDs
Standard CAT5e connection delivers power and signals for up to 6 personal mixers
ULTRANET expansion network connector (RJ45)
Internal autorange power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
Extremely rugged construction ensures long life even under the most demanding conditions
