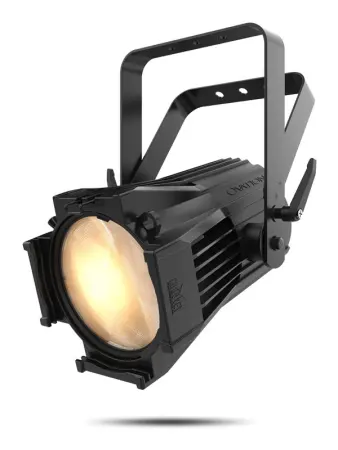

Ovation P-56WW is a bright, compact, and virtually silent par with exceptionally high CRI that is ideal for theatrical and studio applications. The sleek, modern-style par produces a homogenized, single-source, flat and even field of light with the same efficient warm white LED system found in the award-winning Ovation E-260WW ellipsoidal. Interchangeable lens plates are included for medium and wide beam angles. The virtually silent par also features extremely smooth 16-bit dimming, as well as RDM and PWM for set-up ease. The unit accepts standard 7.5” beam shaping accessories.

AT A GLANCE
Warm white PAR style fixture with output comparable to a 1,000 W PAR 64 lamp
16-bit dimming resolution for smooth fades
Compact design with homogenous single source of light
Flat, even field of light
Quiet operation for use in any situation
Interchange lens plates included for narrow, medium and wide beam angles

SPECIFICATIONS
OPTICAL
Light Source: 1 LEDs (WW) 230 W, (3.2 A), 3422 K, 50,000 hours life expectancy
Color Temperature (at full): 3422 KCRI: 98.1
Beam Angle (Narrow lens): 11°
Beam Angle (Medium lens): 22°
Beam Angle (Wide lens): 48°
Beam Angle (Wide lens w/ egg crate) : 37°
Field Angle (Narrow lens): 24°
Field Angle (Medium lens): 39°
Field Angle (Wide lens): 81°
Field Angle (Wide lens w/egg crate): 67°
Lumens (w/Narrow lens): 10,326
Lumens (w/Medium lens): 10,728
Lumens (w/Wide lens): 10,687
Illuminance (w/Narrow Lens): 6,680 lux @ 5 m
Illuminance (w/Medium Lens): 2,470 lux @ 5 m
Illuminance (w/Wide Lens): 475 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 29 Hz
Dim Modes: 4
Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
Weight: 11.6 lb (5.3 kg)
Exterior Color: Black
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: DMX, RDM
DMX Channels: 1, 2, 3 or 6
Modes/Personalities: 4 personalities (1, 2, 3, 6)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
Power and Current: 208 W, 1.72 A @ 120 V, 60 Hz
Power and Current: 215 W, 1.02 A @ 208 V, 60 Hz
Power and Current: 216 W, .93 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
Ovation P-56WW
Neutrik powerCON power cord

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 7.5″ Barndoor
Ovation 60deg, 7.5” Honeycomb

Chauvet OvationP56WW (Chauvet Pro Ovation P56WW)
