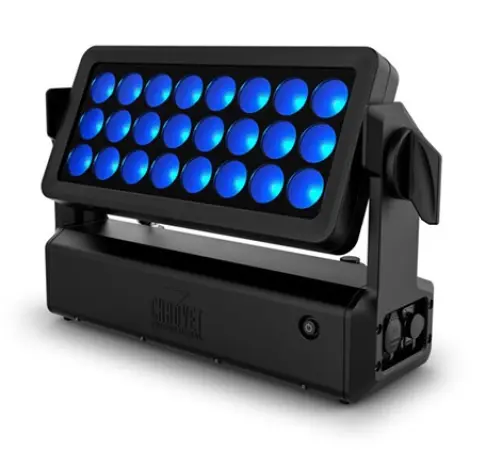

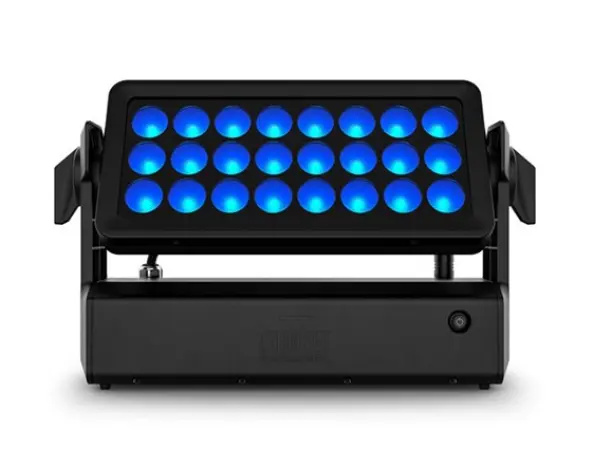

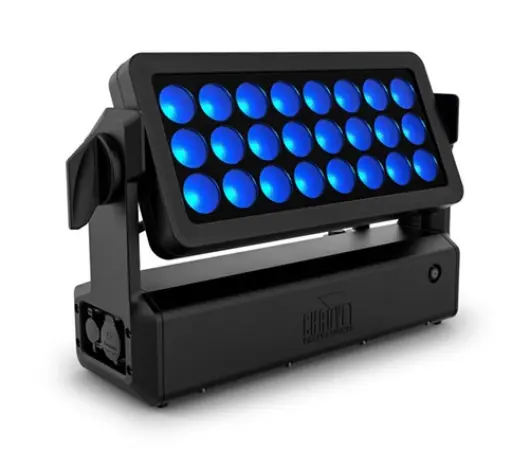

WELL Panel is a completely wireless, IP65-rated, battery-powered wash light with 24 quad-color LEDs. The robust unit delivers bright, fully saturate tones and pastel colors, casting it as the right tool for onstage productions or highlighting scenic and architectural pieces. Adjustable beam angles and the included magnetic diffuser adds even wider coverage. This truly versatile fixture is capable of selectable dimming, red shift emulation, and PWM settings. Control your way via W-DMX, IR remote, DMX.

Features:
A completely wireless, IP65 rated, battery powered fixture with 24 quad color (red, green, blue and warm white) LEDs that is controlled by W-DMX, IR, DMX or control panel
High CRI value of 90+ across different color temperatures of white
Selectable Red Shift emulation over DMX and from the fixture display
Selectable PWM settings
Selectable dimming speed and curves
Built in color temperature presets and
RDM control over DMX for fixture setup and reporting
Line voltage input allows fixture to operate while being charged
Built in power loss detection when operating under line voltage
Wireless operation with WDMX or IR remote (not included) as well as wired DMX operation
Magnetic diffuser filter included for wider light coverage
Omega bracket included for easy hanging options
User selectable hours of operation (3, 5, 8, 12) at full output with a recharge time of 4 hours
Built in automated programs recallable by W-DMX, DMX or manually.
170-degree rotation of the panel from the base for easy direction of light
IP65 rating for temporary outdoor usage

Specifications:
OPTICAL
Light Source: 24 LEDs (24 red, 24 green, 24 blue, 24 warm white) 1 to 3 W, (500 mA), 50,000 hours life expectancy.
Lumens: 5117 w/filter, 5773 w/o filter
Installed Optics: 15°
Beam Angle (w/o filter): 14°
Beam Angle (w/filter): 32.3°
Field Angle (w/o filter): 25.8°
Field Angle (w/filter): 54.4°
Illuminance (w/o filter): 2830 lux @ 5 m
Illuminance (w/ filter): 550 lux @ 5 m

DYNAMIC EFFECTS
Tilt: 170°
Tilt Ranges: 0° to 170° tilt
Color Macros: 20 color macros
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Built in red shift: yes
Dim Modes: 4 dimming curves and 3 dimming speed settings
Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
Dimensions: 17.17 x 5.31 x 10.24 in (436 x 135 x 260 mm)
Weight (single unit): 22.6 lb (10.3 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast

CONNECTIONS
Power Connection: Seetronic PowerKon IP 65
Power Input/output: Seetronic PowerKon IP 65
Data input/output: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: W-DMX TRX, IRC, DMX, RDM
DMX Channels: 4, 7, 12, 13, or 20
Modes/Personalities: 6 personalities (4Ch, 7Ch, 12Ch, 13Ch, 12Ch2, 20Ch)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current (single unit charging): 123 W, 1.029 A @ 120 V, 60 Hz
Power and Current (single unit charging): 124 W, 0.587 A @ 208 V, 60 Hz
Power and Current (single unit charging): 123 W, 0.532 A @ 230 V, 50 Hz

BATTERY
Battery type: Lithium Ion
Rechargeable: Yes
Battery Charge Time: 4 hours
Battery Life: selectable: 3, 5, 8, 12 hrs

CERTIFICATIONS / QUALIFICATIONS
CE, FCC
IP Rating: IP65, temporary outdoor/wet use with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
WELL Panel
Magnetic filter
Omega bracket
QRG

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07

Chauvet WELLPanel (Chauvet Pro WELLPANEL)
