Product Description

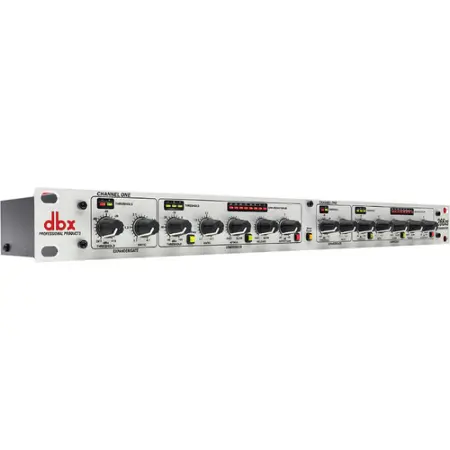

DBX 266XS (DBX 266 XS) - Compressor/Gate

Product Highlights

  • Dual Channel
  • Stereo or Dual-Mono
  • Classic dbx "Auto" Mode
  • Side Chain Insert
  • Separate LED Displays

The DBX 266xs is a dual channel compressor/gate that when added to a live sound rig or studio, will deliver more polished, professional sound. The unit can function either as a stereo processor or in dual mono mode and features all the usual controls required for this kind of processor.

The unit provides the ability to smooth out uneven levels, add sustain to guitars and fatten up drums. It also makes it easy to bring vocals to the front of a mix. For simplified operation the Overeasy compression technology returns smooth and musical performance, while the exclusive AutoDynamic attack and release controls puts great sound within easy reach.

The processor has true RMS power summing and features quality input and output connectors. Comprehensive visual feedback is provided by gain reduction metering and backlit switches.

Error proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes

New gate timing algorithms ensure the smoothest release characteristics

Program-adaptive expander/gates

Great sounding dynamics control for any type of program material

Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup

Stereo or dual-mono operation

Balanced inputs and outputs on 1/4" TRS and XLR connectors

Side Chain insert

Classic dbx "Auto" mode



Function Compressor/gate
Number of Channels 2
Inputs 2 x XLR (pin 2 hot)
2 x 1/4" TRS phone 1
Input Impedance >40kΩ balanced, >20kΩ unbalanced
Maximum Input Level >+22dBu, balanced or unbalanced
Outputs 2 x XLR(pin 2 hot)
2 x 1/4" TRS phone 2
Output Impedance @ +4dBu: 100Ω balanced, 50Ω unbalanced
@ -10dB: 1kΩ balanced, 500Ω unbalanced
Maximum Output Level >+21dBu balanced/unbalanced into 2kΩ or greater
>+18dBm balanced/unbalanced into 600Ω
Other Connectors Side Chain
Type: 1/4" TRS phone, Normalled: Ring = Output (send); Tip = Input (return)
Impedance: Tip = >10kΩ (input), Ring = 2kΩ (output)
Maximum Levels: >+22dBu (tip/input), >+20dBU (ring/output)
Compression Threshold -40dBu to +20dBu
Compression Ratio 1:1 to infinity:1, variable
Attack Time Scalable program-dependent AutoDynamic
Release Time Scalable program-dependent AutoDynamic
Slope OverEasy or hard knee, selectable
Make-up Gain -20dB to +20dB
Gate Threshold -60dBu to +15dBu
Ratio 1:1 to 4:1 expansion
Gate Rate Attack: <100µSec (from maximum depth)
Release: Program dependent
Frequency Response FR: 20Hz to 20kHz, +0/-0.5dB
Bandwidth: 0.35Hz to 9okHz, +0/-3.0dB
Dynamic Range >114dB, unweighted
Noise <-93dBu, unweighted (22kHz measured bandwidth)
THD + N <0.02% typical on any amount of compression @ 1kHz
Crosstalk <-95dB, 20Hz to 20kHz
CMRR >40dB, typical, >55dB @ 1kHz
Operating Temperature 32°F to 113°F (0°C to 45°C)
Power Requirements 100~120VAC 50/60Hz
15W maximum power consumption
Dimensions (WxDxH) 19 x 5.75 x 1.75" (483 x 146 x 45mm)
Weight 4.84 lb (2.19kg)
Specialties SMPTE IMD: <0.2%
