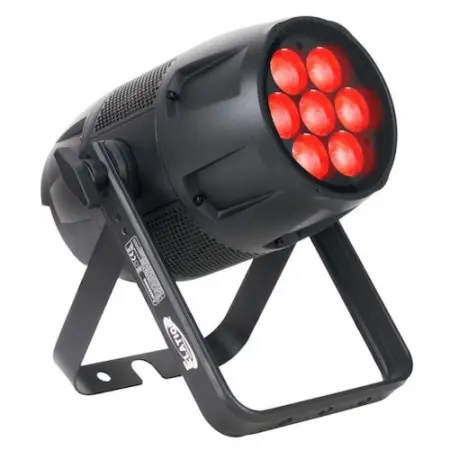

The ARENA ZOOM Q7IP™ an IP65 outdoor rated par fixture featuring (7) 30W Osram™ QUAD-Color RGBW LEDs, 7° to 40° motorized zoom, smooth color mixing, 38 color macros and variable speed macro effects, RGB white balance calibration, variable 3,200-10,000K color temperatures, selectable dimming curve effects, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX and RDM (remote device management) protocol support, IP rated 5pin DMX and powerCON TRUE1 power in/out connections, 4 Button 180° Reversible OLED Menu Control Display, integrated dual rigging yoke/floor stand, a durable die-cast housing, multiple unit power linkable, and a multi-voltage universal auto switching power supply (100-240v).

Features:

IP65 Outdoor Rated Par Wash Luminaire
(7) 30W Osram™ Quad-Color RGBW LEDs
7° to 40° Motorized Zoom
38 Color Macros and Variable Speed Macro Effects
Variable 3,200-10,000K Color Temperatures
Selectable Dimming Curve Effects
Adjustable LED Refresh Rate and Gamma Brightness
Dual Rigging Yoke / Floor Strand
Durable Die-Cast Housing

Specifications:

SOURCE
7x 30W Osram™ Quad-Color RGBW LEDs
30,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA
3,000+ Total Lumens

EFFECTS
7° - 40° Motorized Zoom
38 Color Macros and Variable Speed Macro Effects
Variable 3,200-10,000K Color Temperatures
Selectable Dimming Curve Effects

COLOR
RGBW

CONTROL / CONNECTIONS
(5) Multiple DMX Channel Modes (12 total channels)
Adjustable Refresh Rate (600-28,800 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)

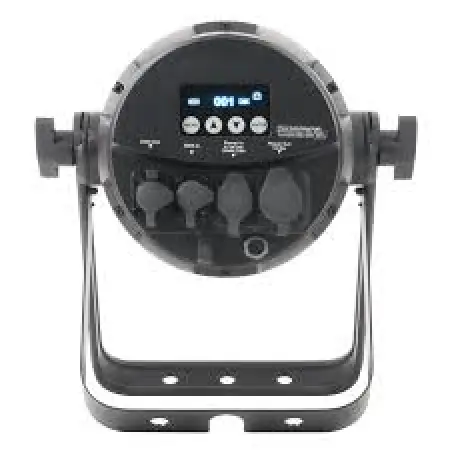

4 Button 180° Reversible OLED Menu Control Display
DMX and RDM Protocol Support
IP Rated 5pin DMX In/Out
powerCON TRUE1Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 12.4” (316mm)
Width: 9.6” (245mm)
Vertical Height: 7.8” (197mm)
Weight: 19.0 lbs. (8.6kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
250W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE | IP65

Elation Professional Arena Zoom Q7 IP (Elation ARE725)
