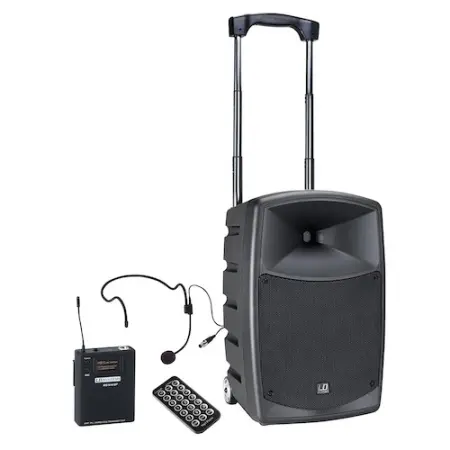

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.
The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates in the 584 -607 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power(LDRBUD10B5) or as an alternative a headset microphone with belt pack (LDRBUD10HSB5) and an IR-remote control for the player are included.
For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.
The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
Sweet SixTeen BP B5 Belt Pack for Guitar, Lavalier Microphone and Headset with 3-pin Mini XLR connector
Easy handling and setting of the 16 channels.
Separately adjustable high-impedance Guitar level and two Microphone levels for optimal adaptation.
Approx. 12 hours of operating time with 2 AA Mignon batteries.
Metal clip for professional fastening to belt, pocket, etc.
Roadman 102 R B5 16 channel UHF receiver module for Roadman 102, Roadboy 65 and Roadbuddy 10
Standard Roadman and Roadboy feature one receiver module.
They both feature 2 slots, so you can add one more receiver module.
WS 100 MH 1 Headset Microphone for WS 100, WS 1000, WS 1616 and WS ECO Series
Uni-directional Electret Condenser Headset Microphone.
Impedance: < 680 Ohms.
Frequency Response: 20 Hz - 20 KHz.
Sensitivity : - 44 ± 2 dB (at 1 KHz.)
Product number: LDRBUD10HSB5
Product type: Battery-powered PA speaker
Low/mid driver dimensions: 10"
Woofer size: 254mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1"
HF Driver Size: 25.4mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
Amplifier: Class D
Peak power: 480W
Frequency response: 55 - 18000Hz
SPL (1W/1m): 96dB
Max. SPL: 115dB
Protection circuits: over-current, thermal overload, short circuit
Controls: Total volume, CD / Tape IN Level, AUX / MP3 switch, Echo, Mic 2 Level, high, Mic 1 Level, Master Volume, low
Indicators: Charge/battery status, Power
Supported media: Bluetooth, USB stick, SD Card
Supported formats: WMA file, MP3 file, WAV-CD
Media player controls: equalizer, Play / Pause, Mode (Menu / Bluetooth /SD / USB), Previous Track, Stop, Next Track, Repeat
Media player display elements: Lighted multifunctional LC display
Line inputs: 1
Line input connectors: 3.5 mm jack, 2 x RCA, 6.3 mm jack, 2 x XLR
Mic inputs: 2, 6.3 mm jack, 2 x XLR
Transmission frequency range: 584.000 - 607,000MHz
Modulation Type: FM
Frequency Response Wireless Unit: 50 - 17000Hz
Controllers Wireless Unit: ASC, Mute Level (Squelch), Value Up, Value Down, Power / Volume
Indicators Wireless Unit: AF (LED), LED Display, RF (LED)
Connections Wireless Unit: nTNC for receiver antenna
RF Transmitter Power Output: 10mW
Bodypack weight: 0.08kg
Bodypack material: ABS plastic
Operating voltage: Switching power supply, 100 V - 120 V / 60 Hz, 220 V - 240 V AC / 50 Hz
Rechargeable batteries: 12 V / 5 Ah
Cabinet material: polypropylene
Cabinet construction: vented
Width: 12.4" / 415mm
Height: 20.6" / 525mm
Depth: 12.9 / 328mm
Weight: 36.3lbs. / 16.5kg
Other features: transport handle, Transport casters, Stand mount 36 mm
