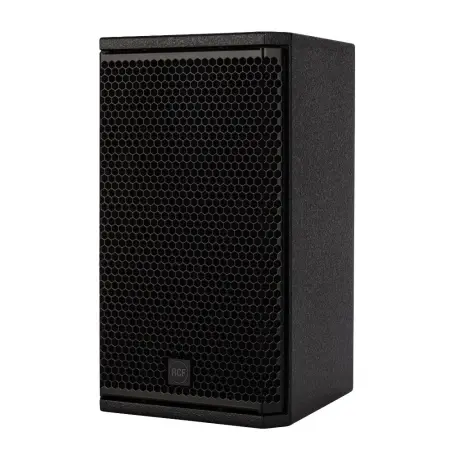

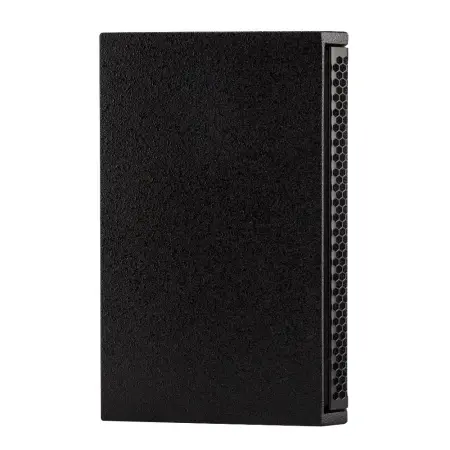

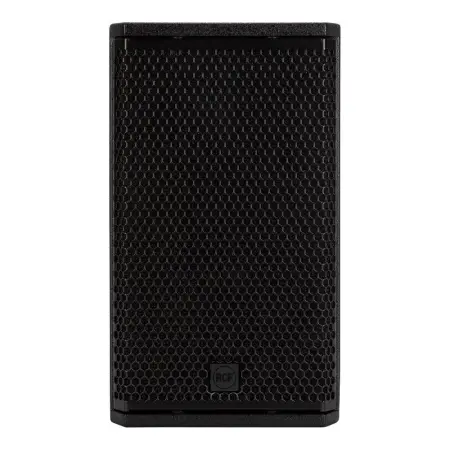

COMPACT M 06 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 06 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided neodymium dome tweeter. The SPL level of low-distortion audio the M 06 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 06 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 06 on wall or ceiling installations.

FEATURES:

100 W RMS power handling
116 dB max SPL
60 ÷ 20000 Hz frequency range
120° x 80° constant directivity coverage angle
1 x 6" high power woofer
1 x 1" voice coil neodymium dome tweeter
High quality plywood cabinet
Steel front grille with clothing
Installation points available on rear, top and bottom panels
4 pole EUROBLOCK connector (audio input and parallel link output)

SPECIFICATIONS:

ACOUSTICAL SPECIFICATIONS
Frequency Response (-10dB)
60 Hz ÷ 20000 Hz
Max SPL @ 1m
116 dB
Horizontal coverage angle
120°
Vertical coverage angle
80°
Directivity index Q
7
System Sensitivity
90 dB
POWER SECTION
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
100 W
Peak Power Handling
400 W PEAK
Protections
Dynamic active mosfet
Crossover Frequencies
2200 Hz
Recommended Amplifiers
DMA 162, DMA 162P, DMA 504, DMA 82
TRANSDUCERS
Dome Tweeter
1.3'' neo, 1.0'' v.c
Woofer
6.0'', 1.5'' v.c
INPUT/OUTPUT SECTION
Input connectors
Euroblock
Output connectors
Euroblock
STANDARD COMPLIANCE
Safety agency
CE compliant
PHYSICAL SPECIFICATIONS
Hardware
4 x M6, 2 x M8
Color
Black - RAL 9005, White - RAL 9003
SIZE
Height
365 mm / 14.37 inches
Width
211 mm / 8.31 inches
Depth
232 mm / 9.13 inches
Weight
5.5 kg / 12.13 lbs
SHIPPING INFORMATION
Package Height
386 mm / 15.2 inches
Package Width
256 mm / 10.08 inches
Package Depth
235 mm / 9.25 inches
Package Weight
7 kg / 15.43 lbs

RCF USA COMPACT M 06 (RCF COMPACT M 06 Passive)
