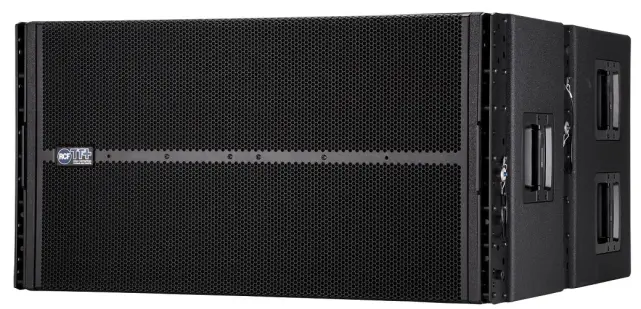

RCF TTL36 AS (RCF TTL 36AS)
The TTL36-AS is the ideal flyable bass complement for the TTL55-A array
system.
The clam-shell design guarantees the maximum output per size while the 2 x 4.5”
voice coil vented 18” woofer design offers the minimum of power compression. The
TTL36-AS is perfect to create flown systems for theatrical and indoor
requirements. For very large outdoor systems is the perfect complement to
reinforce the TTL55-A bass performance in combination with the ultra powerful
TTS56-A subwoofers.
Features
- 4000 Watt (2 x 2000 W digital switching amplifiers)
- 2 x 18" high power neodymium woofer, 4.5" v. c.
- 96 Khz, 32 bit DSP processing
- Remote monitoring and control
- Time delay alignment
- Cardioid preset for stacking groups of 3
- Tour grade Baltic birch cabinet, integrated rigging.
- Maximum output per size
Acoustical Specifications
- Frequency Response -3 dB:
35 Hz ÷ 120 kHz
- Max SPL:
142 dB
- Woofer: 2
x 18" neo, 4.5" voice coil
Input/Output Section
- Input signal:
Bal/unbal
- Input connectors:
XLR, RDNet Ethercon
- Output connectors:
XLR, RDNet Ethercon
- Input sensitivity:
-2 dBu / + 10 dBu
Processor Section
- Crossover frequencies:
80 Hz/100 Hz
- Protections:
Thermal, Excurs., RMS
- Limiter:
soft limiter
- Controls:
DSP controlled
Amplifier Specifications
- Total power:
2 x 2000 W
- Low frequencies:
2 x 2000 W
- Cooling:
Convection/Forced
- Connections:
Powercon
Cabinet
- Cabinet Material:
Baltic birch
- Hardware:
Array fly-ware
- Handles: 6
on side
- Colour:
Black
Physical Specifications
- Height:
536 / 21.10 mm/inch
- Width:
1022 / 40.23 mm/inch
- Depth: 970
/ 38.18 mm/inch
- Net Weight:
120 / 264.55 kg/lbs
