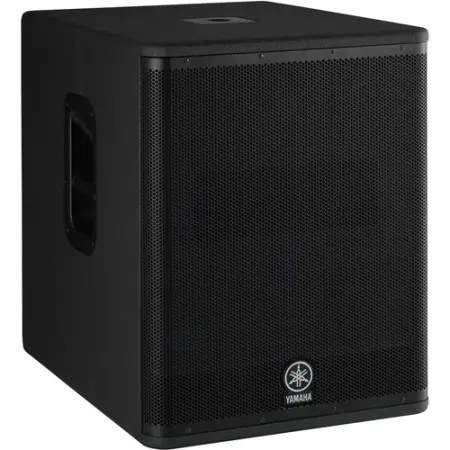

The Yamaha DXS15 Powered Subwoofer delivers powerful yet focused low end reaching as low as 42Hz. Cutting edge technology unrivalled versatility and unequalled power - that's the Yamaha DXS15. The DXS's fully optimized band-pass design combines with its powerful Class-D amplifier, long travel 15 inch woofer, and formidable DSP to deliver a tight, impressive bass with outstanding depth and high power output. Yamaha introduces a new line of compact, high output active subwoofers that match perfectly with DSR and DXR full-range active loudspeakers.
Power In Versatility
The DXS Series has an all-new band-pass design that produces extremely high SPL by drastically reducing the distortion. The DXS features a customized, high-power handling woofer with superior damping, for a clean, accurate delivery of the massive power produced by a 950W Class-D high-efficiency amplifier. Yamaha's formidable DSP technologies are perfectly utilized for precise tuning of filters, flexible control of the LPF setting and low-frequency response, as well as high-grade protection functions that ensure all components perform to the full limit of their potential. Powerful D-XSUB processing allows you to choose from either NORMAL, BOOST or XTENDED LF settings. NORMAL mode gives you the ideally balanced low-frequency response, while BOOST mode provides a more tight and focused bass. XTENDED LF mode drops the low end frequencies down-even further for thunderous bottom end that delivers. Take your full-range system to the next level with the power and versatility of DXS Series active subwoofers.
Speaker type: 15 in. powered subwoofer, Band-pass type
Frequency Range (-10dB): 45Hz - 160Hz
Diameter: 15 in. cone
Voice Coil: 2.5 in.
Dynamic: 950 watts
Continuous: 600 watts
Maximum output level (1m; on axis): 132dB SPL
INPUT: XLR-3-31 x2
THRU: XLR3-32 x 2 (Parallel with INPUT)
Processors: D-XSUB: BOOSTXTENDED-LF OFF
Power consumption: 120 watts
Power requirements: 100V - 240V, 50Hz/60Hz
Pole socket: 35mm (Top x1)
Dimensions (WxHxD): 18 7/8 x 24 3/8 x 24 4/8 inches (478x618x624mm)
Weight: 38.0kg (83.8 lbs.)
